Rubber Suction Cups with M6 Screw Stem 47mm-80mm | OEM/ODM
Industrial grade rubber suction cups with M6 screw stem, 47mm to 80mm sizes available. OEM/ODM custom size, hardness & material for industrial equipment mounting.
Key Features
Wide Size Range 47-80mm: Available in multiple sizes from 47mm to 80mm diameter to accommodate different weight capacities and mounting requirements
M6 Threaded Screw Stem: Standard M6 metal screw securely attached for easy installation and stable mounting on various surfaces and industrial fixtures
Strong Vacuum Holding Power: High-quality rubber material creates reliable vacuum suction with consistent holding force on smooth non-porous surfaces
Durable & Long-Lasting: Premium NBR/EPDM rubber construction resists wear, aging, and temperature changes for reliable performance in demanding environments
Full OEM/ODM Customization: Custom sizes, materials, hardness, and screw specifications available - tailored to your specific industrial application needs

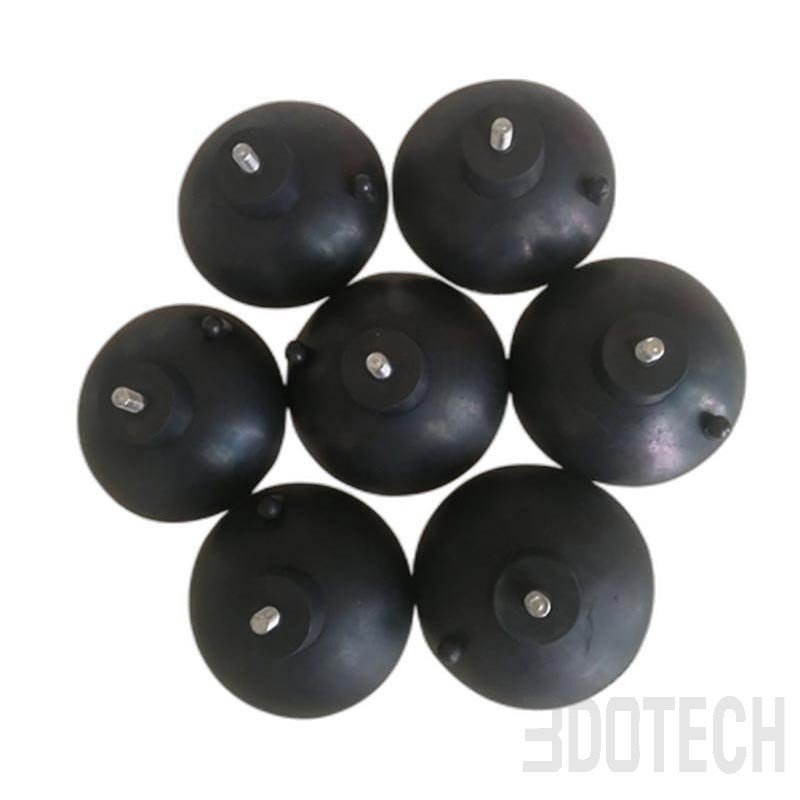

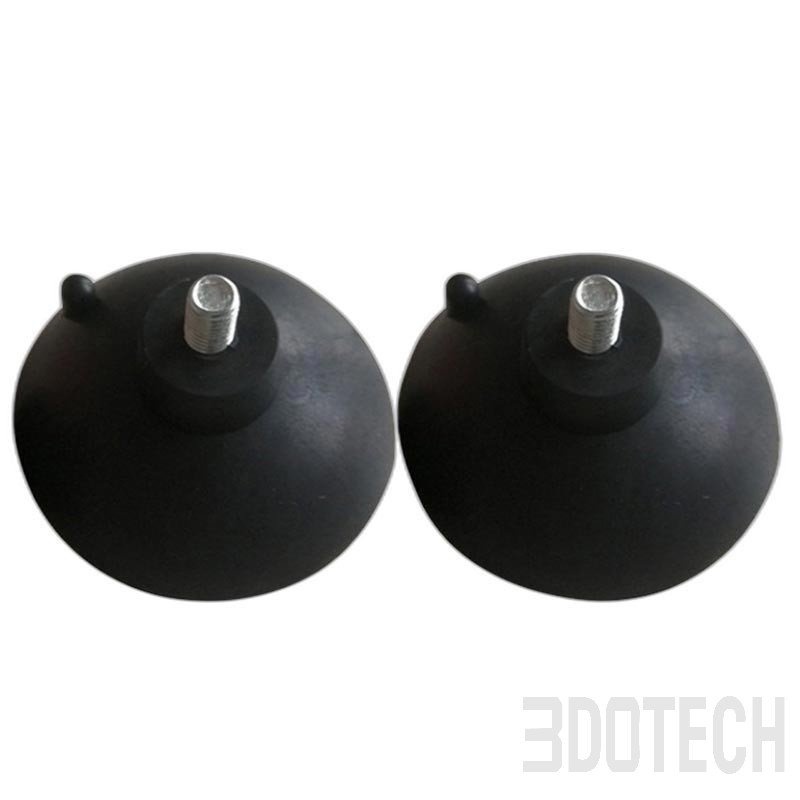

Rubber Suction Cups with M6 Screw Stem - 47mm to 80mm
Our rubber suction cups with M6 screw stems are available in sizes from 47mm to 80mm diameter, providing strong vacuum holding power for industrial mounting applications. Featuring standard M6 threaded screws and high-quality rubber construction, these suction cups offer reliable performance and easy installation on glass, metal, and other smooth surfaces.
Product Overview
Our M6 screw stem rubber suction cups are available in a versatile size range from 47mm to 80mm diameter, making them suitable for a wide variety of industrial and commercial mounting applications. Each suction cup features a high-quality rubber body that creates a strong vacuum seal on smooth, non-porous surfaces like glass, metal, plastic, and ceramic.

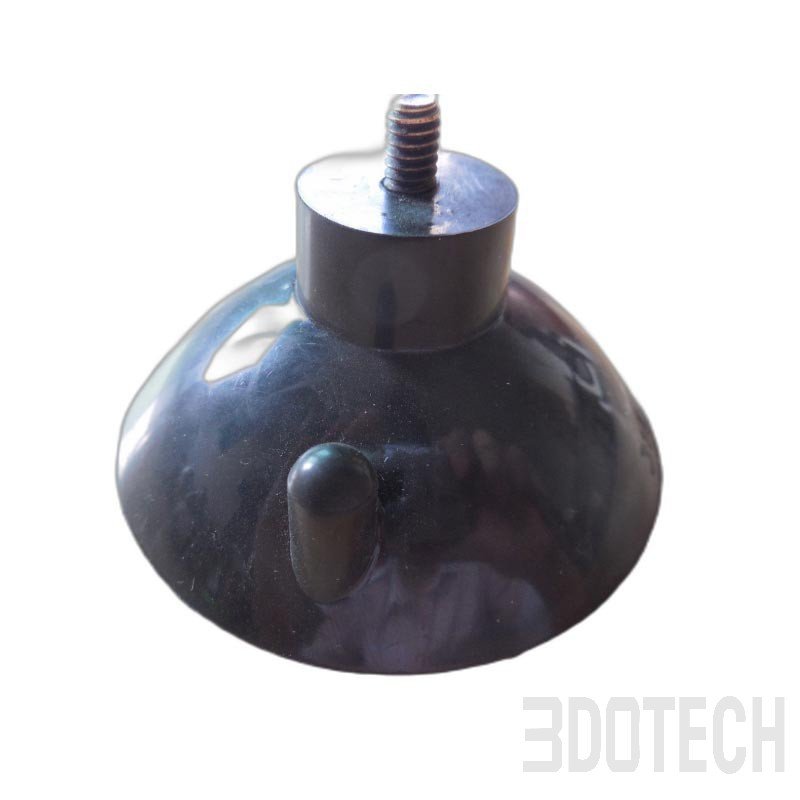

The integrated M6 threaded metal screw stem provides a secure mounting point for easy installation with standard nuts, washers, or threaded holes. The convenient pull tab on the side allows for easy release and removal when needed. These suction cups are available in various rubber materials including NBR (nitrile rubber), EPDM, silicone, and natural rubber, each with specific properties for different temperature ranges, chemical resistances, and application environments.
The 47mm to 80mm size range provides options for different weight capacities - smaller sizes for lighter loads and compact mounting, larger sizes for heavier loads and stronger holding power. Common applications include glass mounting and handling, signage installation, industrial fixtures, automotive components, household products, display stands, and more. As an experienced OEM/ODM rubber products manufacturer, we offer full customization including custom sizes, shapes, materials, hardness levels, screw specifications, and colors to create the perfect suction cup solution for your specific application.
Product Specifications
| Parameter | Specification |
|---|---|
| Material | NBR / EPDM / Silicone / Natural rubber / Custom materials |

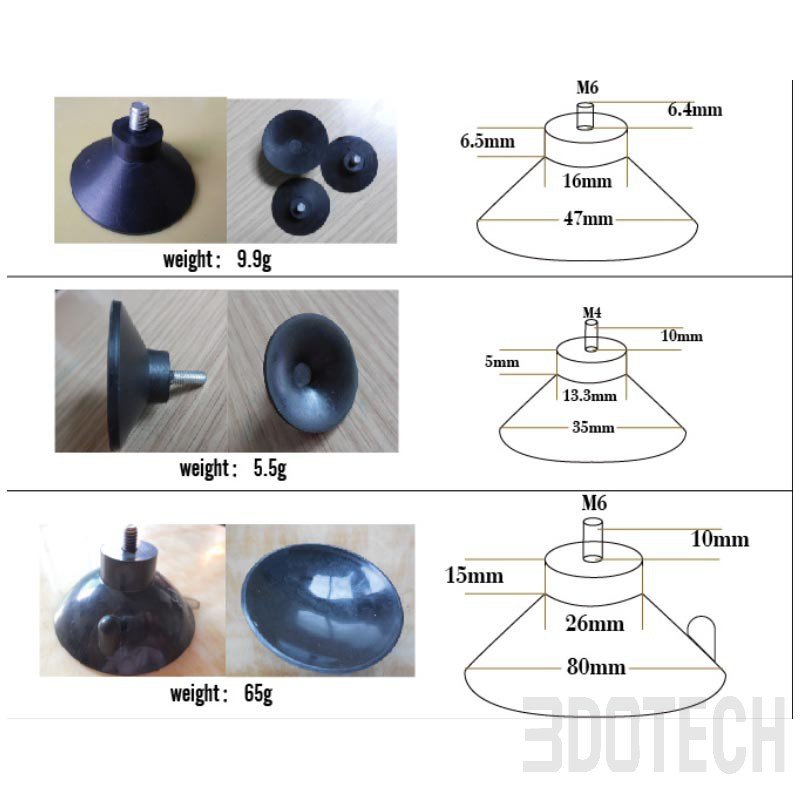

| Suction Cup Diameter | 47mm to 80mm (custom sizes also available) |
| Screw Size | M6 (standard) - M3, M4, M5, M8, M10 also available |
| Screw Length | Standard length - custom lengths from 10mm to 50mm+ available |
| Shore Hardness | 40-70 Shore A (custom hardness available) |
| Color Options | Black, transparent, custom colors - Pantone matching available |
| Temperature Range | -30°C to 80°C (depends on material - custom ranges available) |
| Holding Force | Medium to heavy duty - varies by size, material, and surface condition |
| Release Tab | Side pull tab for easy removal and quick release |
| Application | Glass mounting, signage, industrial fixtures, automotive, household, displays |
| Customization Service | Full OEM/ODM - size, shape, material, hardness, screw spec, color |
| Certification | ISO 9001, RoHS, REACH compliant (as required) |
Looking for 47mm to 80mm rubber suction cups with M6 screw stems or custom suction cup solutions for your industrial application? Contact us today to discuss your specifications, request samples, and get a competitive quote for your OEM/ODM suction cup project. |
