Silicone DFM Optimization & Design Guide | Part 2

Update time:

In custom silicone product development, the transition from a 3D CAD model to stable volume production requires rigorous analysis. Design for Manufacturing (DFM) operates as the critical bridge, identifying production limits, tooling complications, and potential part failures before establishing hard automation.

For product developers targeting highly regulated or high-performance sectors, minor structural errors often compound into high scrap rates. Proper DFM planning minimizes complex engineering revisions, stabilizes shrinkage control, and ensures repeatable surface textures across production cycles.

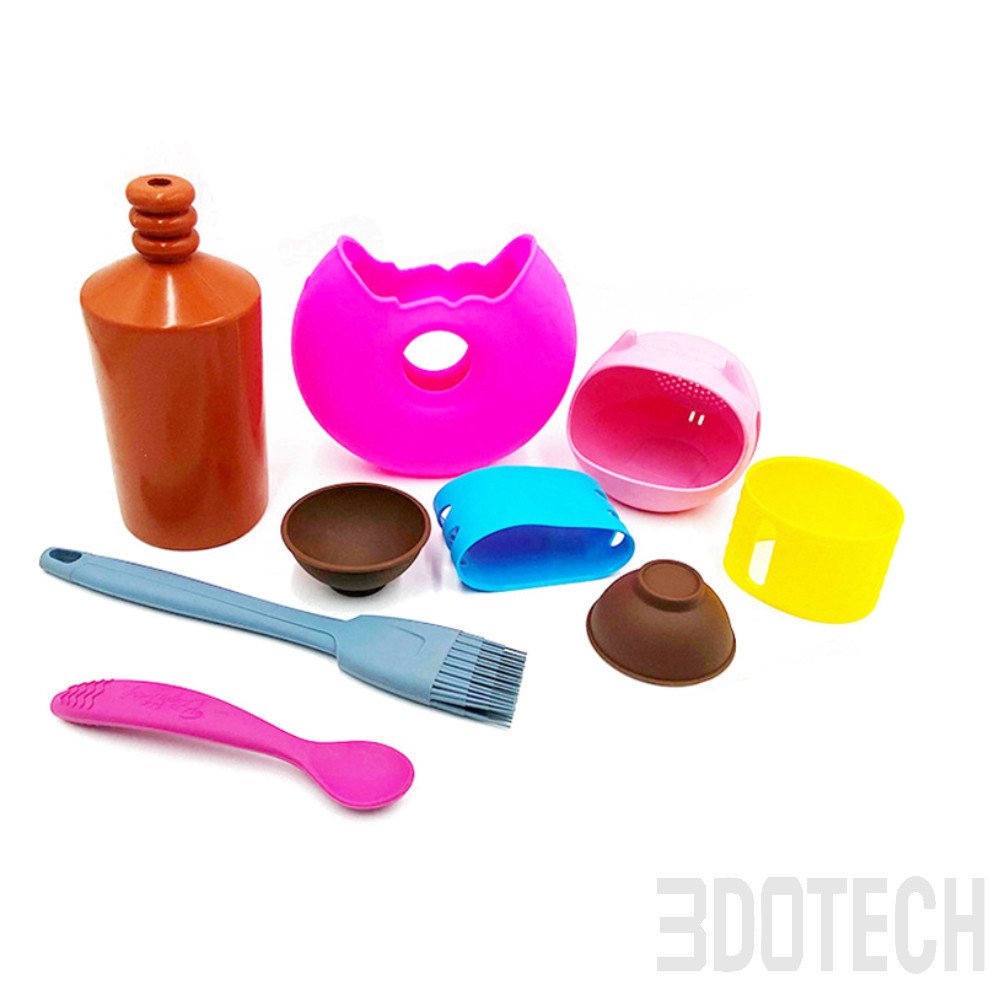

DFM Optimization Rules Across Key Product Applications

Different product sectors present distinct mechanical challenges. The engineering division at 3DOTECH categorizes DFM optimizations based on field-specific functional requirements:

  • Infant and Child Care Products: Demands meticulous flash control planning along parting lines. Items like infant teethers undergo strict micro-flash inspection to guarantee seamless, non-irritating edges for sensitive direct contact.

  • Pet Accessories and Slow Feeders: Features extensive high-suction foundations and complex interior geometries. Deep textures require custom draft angles to facilitate smooth demolding without tearing flexible segments during compression cycles.

  • Wearable Electronic Components: Focuses on absolute dimensional precision and skin-compatible raw formulations. Multi-material assemblies require careful tolerance design to guarantee precise mechanical fit or secure overmolding bounds.

  • Culinary and Kitchenware: Prioritizes thermal stability and permanent compression set performance. Glossy surface specifications must be mapped away from primary parting paths to limit visible tooling witness marks.


Key Specification and Tooling Limits Reference

Establishing balanced design boundaries stabilizes production scaling. The table below represents standardized engineering references implemented during mold development to govern common custom silicone geometries:

Design ElementStandard SpecificationEngineering Manufacturing Impact
Minimum Wall Thickness0.8 mm – 1.0 mmPrevents compound tearing during mechanical ejection.
Draft Angle (Minimum)1° – 2° per sideReduces demolding friction and guards delicate textures.
Standard Linear Tolerance±0.1 mm (ISO 3302-1 M1 class)Governs part dimensions against shrinkage thermal shift.


Engineering Collaboration and Production Readiness

Optimizing a silicone part for production longevity requires balancing structural flexibility with mold limitations. Operating as a technical-driven organization, the engineering workshop at 3DOTECH helps clients adjust complex structural features, optimize tool layout, and verify nominal dimensions through pre-production pilot groups.

To identify potential manufacturability bottlenecks in your custom component, submit your CAD file directly to our team. Our specialists will perform a comprehensive DFM technical review and outline tooling optimizations tailored to your mass-production timeline.
